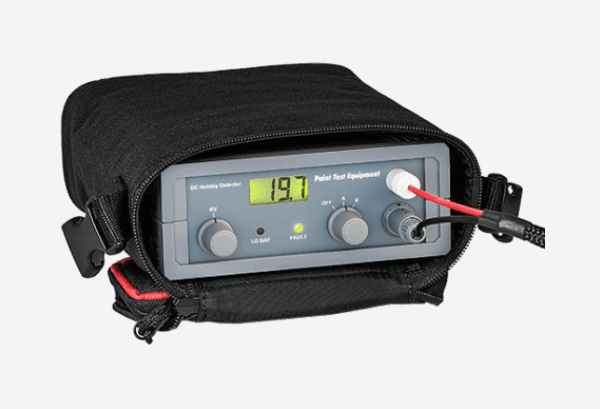

The Holiday Detector uses precision high voltage technology to detect pinholes and flaws in insulated coatings on conductive substrates. Where coatings have to provide an effective safeguard against corrosion, it is essential that any pinholes or flaws that will eventually lead to corrosion are detected at the earliest possible stage.

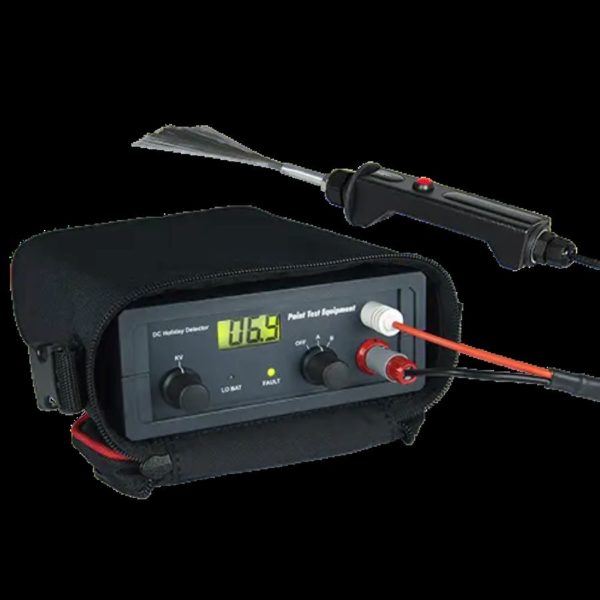

Supplied in an industrial Carrying Case with High Voltage Handle, Band Brush Probe, 10m Earth Cable and Neck Strap. Calibration Certificate with traceability to UKAS is an optional extra.
Compliant to ISO 29601, ISO 2746, NACE SP0274, NACE SP0188 and NACE SP0490.
TECHNICAL SPECIFICATION
Holiday Detector 0.5–6kV for use with coatings up to 1100μm. Resolution 0.01kV.
Holiday Detector 1–20kV for use with coatings up to 3700μm. Resolution 0.1kV.
Holiday Detector 1–30kV for use with coatings up to 8000μm. Resolution 0.1kV.
Voltage accuracy ±1%.
